The production team of ‘ANKA’, Turkey’s first film with car chase sequences, discovered virtual production when MGX Studio shot its car interior scenes using the disguise xR workflow.

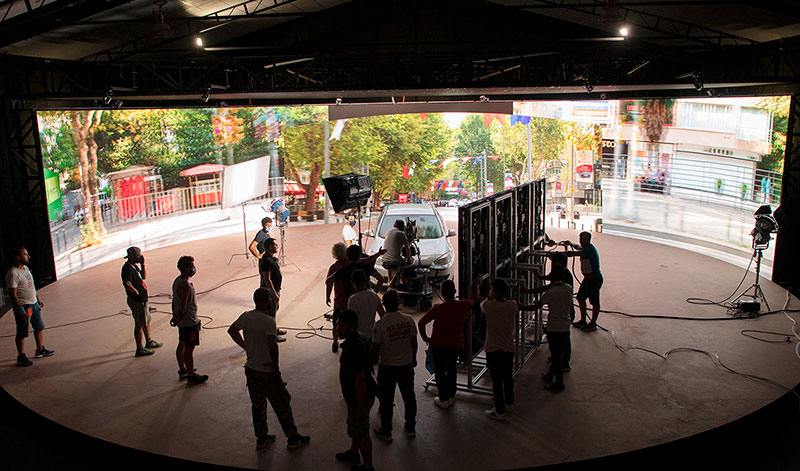

disguise ANKA1 MGX Studios

The production team of ‘ANKA’, Turkey’s first film to include car chase sequences, discovered the advantages of virtual production when it asked MGX Studio to shoot its car interior scenes using the disguise Extended Reality (xR) workflow.

Instead of shutting down hangars, garages, ports and other outdoor locations – including one of the busiest streets in Istanbul for the backdrop of the car interior scenes – the production team chose the more efficient, safe, fast and comfortable option of shooting scenes virtually inside MGX Studio’s LED volume running on disguise vx 1 and vx 2 media servers. The space is Turkey’s first virtual production studio and has already delivered several productions, including projects with Netflix and award-winning Turkish production company, Autonomy.

Video Mapping and Content Control

MGX Studio, using a Sony Venice digital cinema camera, captured sets of photogrammetry images and recorded plate shots of all the venues required for the car interior sequences. Then they created 3D versions of the locations, transformed them into scenes in Unreal Engine with lighting and texturing appropriate for the time of day, and mapped the plates onto the studio’s LED video screen.

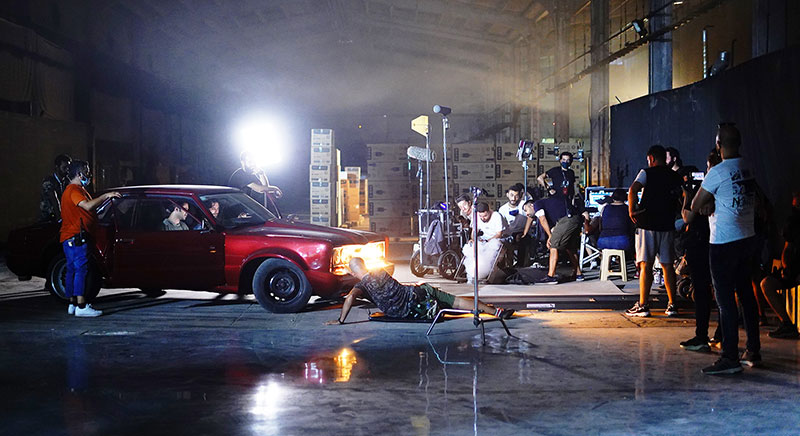

disguise ANKA6 MGX Studios

“We’re proud that vehicle scenes for Turkey’s first car-chase action feature were shot in MGX Studio with virtual production. Taking advantage of disguise for the video content was a very positive experience in terms of video mapping and content control,” said Mete Mümtaz, Virtual Production Operations Coordinator for MGX Studios.

MGX deployed one disguise vx 1 and three vx 2 media servers for the project, which allowed the team to manipulate and format video content and map it to the LED video screen as the production got underway. The virtual shoot employed a Unilumin Upad III LED video display screen and Brompton Tessera SX40 video processing, with Mo-Sys StarTracker camera tracking.

Director Süleyman Mert Özdemir and cinematographers Mehmet Başbaran and Eyüp Boz made the decision to map video plates onto the LED video screen and shoot the stationary car interiors in the studio because they felt this method gave more cinematic and realistic results than compositing a background into place in post. The in-camera mapping approach meant the cinematographers could see the ambience and locales outside the vehicle and plan shooting angles accordingly, while the actors could better interact with the environment.

disguise ANKA7 MGX Studios

The MGX team used the on-site photogrammetry images and video they had captured to create the 3D versions of multiple locations, ready for use on set, within a short timeframe. By setting out a detailed plan, virtual production in the studio was completed in a single day.

Anamorphic Lens Integration

The MGX team also carried out some innovative experimental work on the production with the help of disguise’s support team, who stood by during the process. Since the film’s exteriors were shot with Zeiss lenses, MGX had to carry out spatial calibration on disguise with a set of anamorphic lenses, directly integrating the lenses into the disguise system for the first time.

Alignment of the physical and virtual worlds within the disguise software is the defining attribute in the xR workflow, and is closely related to lenses. When properly calibrated, the xR stage doesn’t reveal seams or visual artefacts that break the blend between the real and virtual environments. The set of calibration data that is contained inside each camera object for a project uses camera tracking data as a base against selected data points, which are observation images of the stage. Together, they generate the pre-defined algorithm that disguise uses to align the tracked camera with the stage, and set up the lens characteristics.

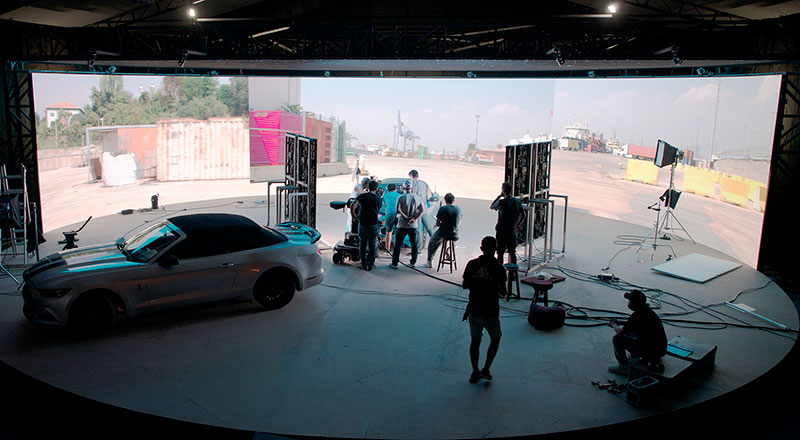

disguise ANKA3 MGX Studios

Two calibrations are performed. Primary Calibration calibrates the offsets between the tracking system and disguise's coordinate system. The Secondary calibration calibrates the zoom and focus data, aligning the virtual content with the real life camera zoom and focal changes, called Lens Poses. disguise interpolates between Lens Poses as the lens zoom and focus values change during the shoot.

MGX Studio delivered the virtual production scenes for ANKA without technical difficulties. The company’s previous virtual production projects in Turkey made them confident that ‘ANKA’ would benefit from virtual production, and the process proved to have a positive outcome for the film in terms of cinematic quality, time saved, on-set safety and comfort, and efficiency.

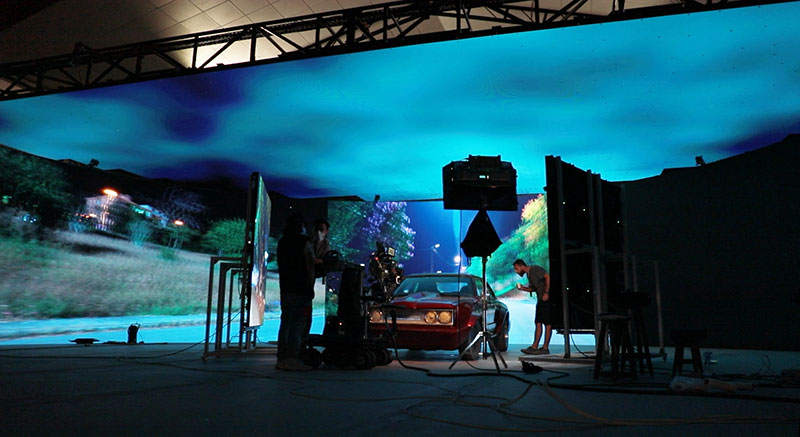

disguise ANKA4 MGX Studios
